High Quality and Reliable Screw Driving System !!!

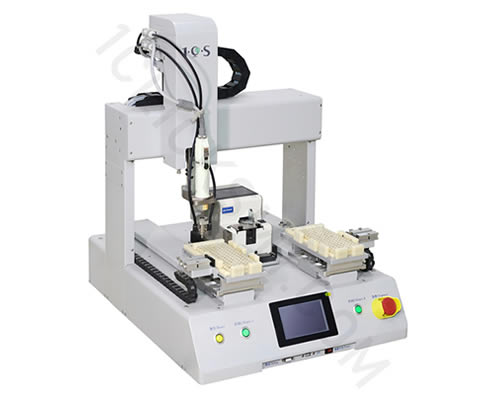

  • SY-S12T with single head and double work station
  • SY-S22T with double head and double work station
  • Customized fixture for variety of application
  • High quality HIOS screw driver and screw feeder

Videos

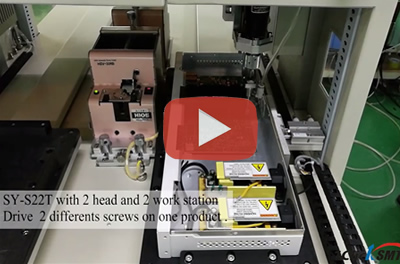

  • SY-S22T drive 2 different screws

    SY-S22T drive 2 different screwsSY-S22T drive 2 different screws

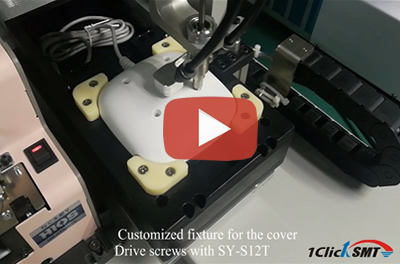

  • SY-S12T drive screws on the cover

    SY-S12T drive screws on the coverSY-S12T drive screws on the cover

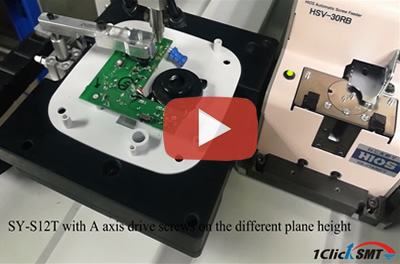

  • SY-S12T with A axis drive screws on different plane height

    SY-S12T with A axis drive screws on different plane heightSY-S12T with A axis drive screws on different plane height

  • SY-S12T with double work station and A axis

    SY-S12T with double work station and A axisSY-S12T with double work station and A axis

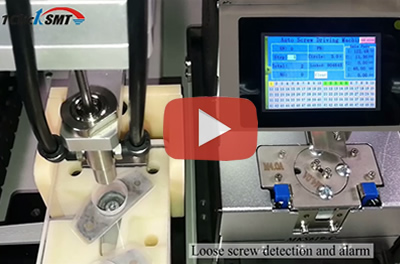

  • loose screw detection and alarm

    loose screw detection and alarmloose screw detection and alarm

Technology

1CLICK SMT

Main features of the 1CS automtic screw driving machine

1
High quality robot with step motor control to ensures machine stably.
2
PLC and touch screen control system with full english interface , easy to operate.
3

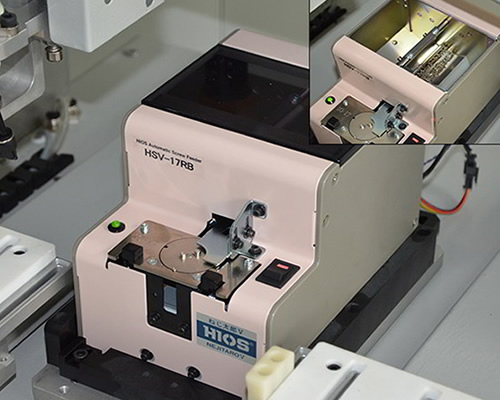

Equipped with high quality Japan made HIOS screw driver and feeder.
4
Double work station realize non- stop running , improve production efficiency.
5
Customized fixture is available to variety of products.
6
Support placing products on the front side of machine and taking out on back side of machine.
7
Screw missing detection and loose screw detection are standard configuration.
8
Screw floating height detecting function is optional to ensure each screw is driven to bottom and tightend.
9
SY-S12T/L/M Series with additional small z axis is capable to drive screws on different plane height.
10

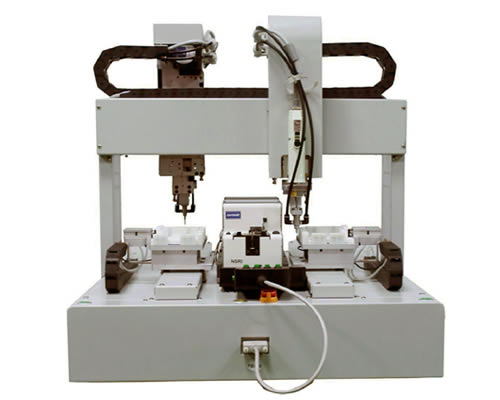

SY-S22T combined 2 screw driving heads and 2 work station in one machine , capable to fasten 2 different screws with 2 kinds of toque requirement , also can be used as 2 machines with single head and single work station large volume production.

Advantages of the 1CS Automatic Screw Driving Machine

1. High Quality robot equipped with Japan made screw driver and screw feeder ensures machine running stably.

2. Double work station realize non- stop running to improve , also each work station can run independently for 2 different products.

3. Additional small Z axis is able to drive screws on different plane height on one product.

4. Screw missing detection and loose screw detection function ensures no screw would be missed and each screw is tightened.

5. Screw floating height detecting function ensures each screw is driven to bottom and tightend.

6. SY-S22T combined 2 screw driving heads and 2 work station in one machine , capable to fasten 2 different screws with 2 kinds of toque requirement , also can be used as 2 machines with single head and single work station large volume production.
